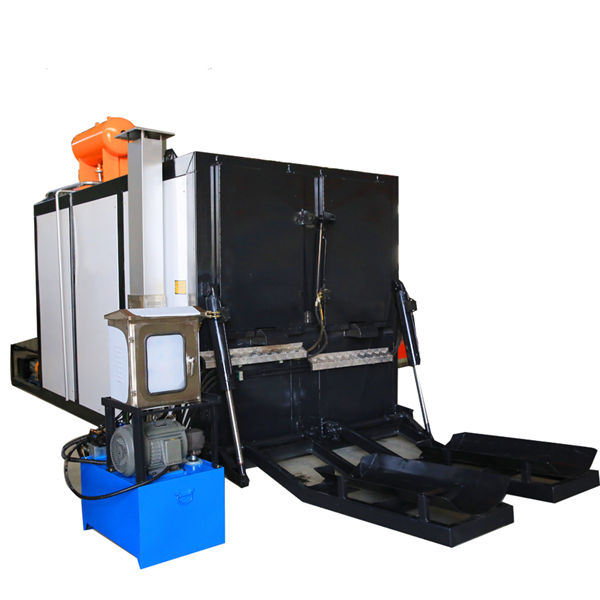

Description Product Introduction ZM-TT3 drummed asphalt melter is mainly composed of a de-barrel box, barrel-placement platform, the integrated device for turning barrels and barrels, heat-conducting oil heating system, and electrical control system. The asphalt de-barrel equipment is divided into two sets asphalt de-barrel heating and asphalt heating. The heating part of the bitumen de-barrel is located in the bitumen de-barrel chamber, and there are heating coils around it. The heating tube and the asphalt barrel mainly exchange heat by radiation. The asphalt heating system mainly relies on the heat transfer oil to exchange heat with the asphalt through the steel pipe and continues to heat the asphalt released from the barrel. Bring the temperature to the pumping temperature. After the asphalt reaches the pump suction temperature, start the asphalt pump, and through the asphalt pipeline system, it comes out from one end of the de-barrel chamber and is driven into the other end of the de-barrel chamber for circulation. Pump into the asphalt storage tank after no moisture. In the asphalt pipeline system, a filter device is installed to automatically remove the barreled asphalt slag. The asphalt de-barrel equipment barrel is placed on the platform, and the barrel is turned over to the landing gear by the downward pressure of the oil cylinder. Enter the barrel removal chamber through the rotation of the landing gear. Main Parameters Model ZZM5060GLQPDimension (mm)5800x2100x2600Productivity (t/h, temperature ≥25℃）3Bitumen temperature (℃)130-160Drum load quantity 16Bitumen storage capacity 6Burner ModelRiello RG5S x2Fuel consumption (L/H)35-50Heating oil temperature (℃)210-240 Temperature control OMRON JAPAN Heating oil grade 320Gross weight (t) 6 Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product. Performance Characteristics 1. Built-in heat transfer oil boiler design, no need for extra installation, and easy to move to other work sites. 2. Burner tube Heating transfer oil dual heat system can improve the heating efficiency and reduce bitumen residue in the drum, the tank body is insulated with 50mm fiberglass. 3. Hydraulic drum loading and feeding system to make the efficiency and safety for continuous operation. * All relevant spare parts for the ZM-TT3 drummed asphalt melter is available. Product Images Product Quick NavigationConstruction machinery and special vehiclesLoadersHoisting MachineryExcavatorsRoad MachineryMining MachineryConcrete MachineryPiling MachineryPort MachineryJMC VehicleAerial Working EquipmentDrilling RigTunnel MachineryFire-fighting MachinerySanitation MachineryReach StackerContainer Side LoaderSpecial VehicleTruck CraneTruck Mounted CraneCrawler ExcavatorSpare PartsXCMG Spare PartsSANY Spare PartsSDLG Spare PartsSHANTUI Spare PartsKomatsu spare partsCummins Engine Spare PartsExcavator hydraulic pumpConstruction Machinery Parts
